        KR FORTEC

        The KR FORTEC is our all-rounder among the heavy-duty robots. It is energy-efficient and dynamic for handling applications in the heavy payload range up to 500 kg. Thanks to its use of our well-known industrial robot concepts, it requires little maintenance when in operation. This gives the robot a high reliability factor in your production.


        Big on handling, cost-efficient in operation

        The new KR FORTEC can be expanded flexibly, is economical in its energy consumption and requires little maintenance. With its payload capacity, the robot fits seamlessly in between the KR QUANTEC and the KR FORTEC Ultra – thus rounding out KUKA’s portfolio. It is predestined for use in the automotive industry and the general industry sector. Thanks to the KR FORTEC, you can standardize your production processes at a high quality level through the use of automated handling. The low total cost of ownership (TCO) of the robot also contributes to the cost-effectiveness of your production processes.?

        All-rounders for the industrial sector:
        The KR FORTEC lifts heavy loads and assembles precisely

        • Compact and powerful

          • High performance in a small space
          • Swift performance with lower energy consumption
          • Shorter cycle times thanks to higher dynamic response
          • Compact form: ideal for tasks like handling and spot welding
        • Modular design

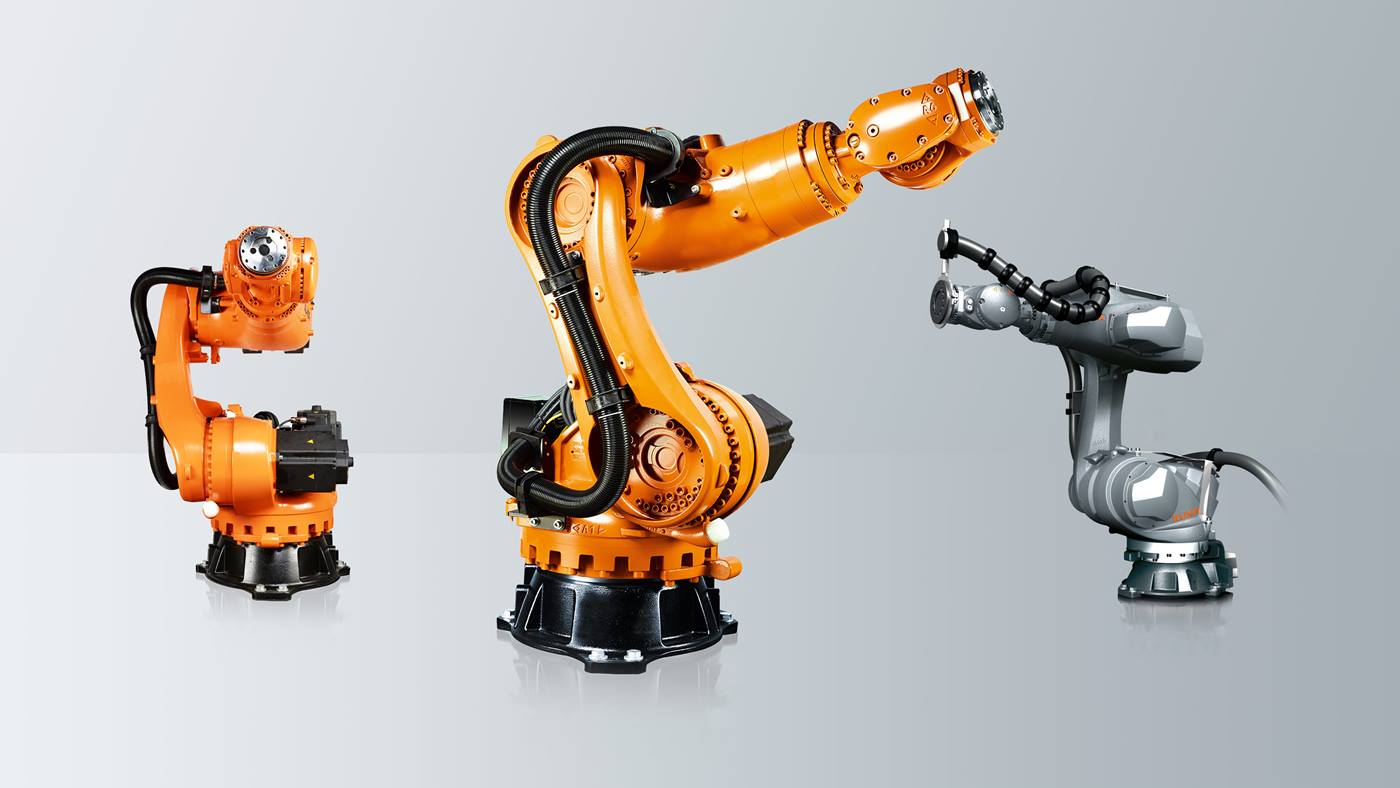

          • Same spare parts for three robot families: KR FORTEC, KR QUANTEC, KR FORTEC ultra
          • Flexibility in planning new tasks and production processes
          • Cost reduction for storage and various robot configurations
        • Low TCO

          • Low energy consumption
          • Reliable continuous operation thanks to high MTBF
          • Proven service concepts, known from the KR QUANTEC and KR FORTEC ultra
        • Minimal maintenance

          • Little time spent on testing: No TüV inspection of the counterbalancing system required
          • Maintenance work can be carried out effortlessly and quickly thanks to optimized accessibility

        240 - 500 Load capacity [kg]

        2800 - 3750 Reach [mm] (arm length)

        Proven quality


        Installation-friendly cable routing

        The hollow shaft ensures simple and safe integration of the customer-specific energy supply system. If repair work is required on this component, it can be carried out at a height that is comfortable and installation-friendly.?

        Use in different environments

        As a foundry variant, the KR FORTEC can be used for heavy-duty tasks in harsh environments.

        Extended temperature range

        Robots sometimes have to work at very low temperatures. The KR FORTEC can be operated between 0 to 55 degrees Celsius.

        Leak-tightness

        As already known from the KR QUANTEC and KR FORTEC Ultra, the wrist on the KR FORTEC is also waterproof and dustproof as standard.

        Greater reach: the KR FORTEC with linear axis?

        Would you like your KR FORTEC to work within a larger radius? No problem. The KL 4000 linear unit extends the working range of the robot. The reach can be modularly adjusted from 1.5 m to 30 m to meet customer requirements. A further advantage for your production: The KR QUANTEC also fits on the KL 4000. If you require the KR FORTEC and KR FORTEC Ultra on a shared linear unit, select the KL 5000.

        KR FORTEC (6 axes) - technical data

        Robots
        Total load
        Maximum reach
        Version environment
        Downloads
        KR 240 R3400-2
        Total load
        240 kg
        Maximum reach
        3400 mm
        Version environment
        Standard
        • Total load 240 kg
        • Maximum reach 3400 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 240 R3700-2
        Total load
        240 kg
        Maximum reach
        3750 mm
        Version environment
        Standard
        • Total load 240 kg
        • Maximum reach 3750 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 240 R3700-2 HO
        Total load
        240 kg
        Maximum reach
        3750 mm
        Version environment
        Food
        • Total load 240 kg
        • Maximum reach 3750 mm
        • Construction type Standard
        • Version environment Food
        • Mounting positions Floor
        • Protection class IP 65, IP 67
        • Downloads n/a
        • Controller n/a
        KR 280 R3100-2
        Total load
        280 kg
        Maximum reach
        3100 mm
        Version environment
        Standard
        • Total load 280 kg
        • Maximum reach 3100 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 340 R3400-2
        Total load
        340 kg
        Maximum reach
        3400 mm
        Version environment
        Standard
        • Total load 340 kg
        • Maximum reach 3400 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 340 R3400-2 F
        Total load
        340 kg
        Maximum reach
        3400 mm
        Version environment
        Foundry
        • Total load 340 kg
        • Maximum reach 3400 mm
        • Construction type Standard
        • Version environment Foundry
        • Mounting positions Floor
        KR 360 R2800-2
        Total load
        360 kg
        Maximum reach
        2800 mm
        Version environment
        Standard
        • Total load 360 kg
        • Maximum reach 2800 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 420 R3100-2
        Total load
        420 kg
        Maximum reach
        3100 mm
        Version environment
        Standard
        • Total load 420 kg
        • Maximum reach 3100 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 420 R3100-2 F
        Total load
        420 kg
        Maximum reach
        3100 mm
        Version environment
        Foundry
        • Total load 420 kg
        • Maximum reach 3100 mm
        • Construction type Standard
        • Version environment Foundry
        • Mounting positions Floor
        KR 420 R3100-2 HI
        Total load
        420 kg
        Maximum reach
        3100 mm
        Version environment
        High Inertia
        • Total load 420 kg
        • Maximum reach 3100 mm
        • Construction type Standard
        • Version environment High Inertia
        • Mounting positions Floor
        KR 500 R2800-2
        Total load
        500 kg
        Maximum reach
        2800 mm
        Version environment
        Standard
        • Total load 500 kg
        • Maximum reach 2800 mm
        • Construction type Standard
        • Version environment Standard
        • Mounting positions Floor
        KR 500 R2800-2 F
        Total load
        500 kg
        Maximum reach
        2800 mm
        Version environment
        Foundry
        • Total load 500 kg
        • Maximum reach 2800 mm
        • Construction type Standard
        • Version environment Foundry
        • Mounting positions Floor
        KR 500 R2800-2 HI
        Total load
        500 kg
        Maximum reach
        2800 mm
        Version environment
        High Inertia
        • Total load 500 kg
        • Maximum reach 2800 mm
        • Construction type Standard
        • Version environment High Inertia
        • Mounting positions Floor
        %x of %y robots visible
        KR FORTEC Robot for handling, welding, gluing

        Request a quote or get more technical details for KR FORTEC
