KR AGILUS

The KR AGILUS is our compact six-axis robot that is designed for particularly high working speeds. Different versions, installation positions, reaches and payloads transform the small robot into a precision artist.

The KR AGILUS stands out due to its versatility that enables you to tap new fields of application. Irrespective of the installation position – whether on the floor, ceiling or wall – it achieves utmost precision in confined spaces thanks to its integrated energy supply system and service-proven control technology from KUKA. The safe robot functionality paves the way for innovative automation concepts. With a wide range of variants for operation in cleanrooms or potentially explosive environments, or with a particularly hygienic or splash-proof design: every version of the KR AGILUS is always precise and fast.

6 - 11 Load capacity [kg]

726 - 1101 Reach [mm] (arm length)

6-axis small robots: Tailor-made for highest performance in production

Agile in every environment

No matter how dirty, wet or sterile – the KR AGILUS achieves top performance in every production environment. A wide range of variants, such as cleanroom robot, hygienic machine, ex-protected robot – for potentially explosive environments – and Waterproof make it a specialist for many different tasks.

Extreme precision with any cycle time

Thanks to its robust design, the KR AGILUS achieves maximum repeatability and continuous precision. With its extreme speed, it reduces cycle times – and increases production quality, without ever getting out of step.

Permanently robust

Thanks to its lifetime lubrication, the KR AGILUS never needs a change of lubricant in the gear units and has minimal maintenance requirements. The robust design ensures continuous productivity.

Protected against electrostatic charges

Electrostatic charges are a problem especially in electronics production. The KR AGILUS has ESD protection even in its standard version. It is thus optimally protected against charging.

Extremely compact

Inverted on the ceiling, sideways on the wall or firmly on the floor: the KR AGILUS adapts to any installation position. We have integrated the energy supply system so that you can integrate the six-axis robot into your space-saving cell concepts.

Clean room certification according to ISO 14644-1

Fraunhofer TESTED DEVICE® & CSM®

reddot Award 2016 winner

All KR AGILUS versions at a glance:

Hygienic Machine variant

The KR AGILUS is available as a Hygienic Machine. The design and the materials used in this variant are absolutely hygienic. This allows it to be used in applications involving direct contact with foodstuffs and pharmaceutical substances.

Corrosion-resistant surfaces, food-compatible lubricants and stainless steel parts ensure the highest level of hygiene. The KR AGILUS is thus perfectly suited to applications requiring a sterile environment.

KR AGILUS CR: Cleanroom automation solution

The KR AGILUS CR is suitable for use in cleanrooms and meets the requirements of cleanroom class ISO2. The cleanroom robot KR AGILUS CR can thus be perfectly integrated into the smallest of spaces and complex applications with high cleanliness requirements.

Thanks to a special powder coating and special seals to protect against particle emission, the cleanroom robot features extremely smooth surfaces. Due to the avoidance of airborne particles, the robot does not generate dust or particles caused by seal abrasion. It thus conforms to the strict cleanroom criteria of the Fraunhofer Institute.

The KR AGILUS is available as a cleanroom variant for air cleanliness class 2. The cleanroom robotis are suitable for use in medical, pharmaceutical and consumer electronics industries.

KR AGILUS WP: 6-axis waterproof robot ideal for wet environments

In the Waterproof variant, the KR AGILUS is splash-proof from all sides and achieves maximum performance even in the case of extreme external production conditions. Stable stainless steel covers have replaced plastic parts, and resistant surface treatments and additional seals in the interior of the small robot enable it to be used in a machine tool environment, for example.

The waterproof version of the KUKA small robot complies with the higher protection rating IP67.

Thanks to the waterproof equipment, the KR AGILUS offers outstanding performance even in the case of extreme external production conditions.

KR AGILUS EX: Robotic for extreme environments

The KR AGILUS can be adapted to even the most extreme ambient conditions: with the KR AGILUS EX we have added explosion protection to the Waterproof variant. With this design, the KR AGILUS can also work with maximum precision in potentially explosive environments (zone 2).

In the EX variant, the direct air line for purging air is used and the robot is pressurized. The pressure is monitored by means of a special, external overpressure detection unit that is available from KUKA as an option.

The KR AGILUS EX works safely and reliably even under the most extreme conditions.

Request a quote or get more technical details for KR AGILUS

Request Quote Visit my.KUKA Marketplace

KR AGILUS (6 axes) - technical data

KR 6 R700-2

Total load

6 kg

Maximum reach

726 mm

Version environment

Standard

Downloads

KR AGILUS

6-axis small robots: Tailor-made for highest performance in production

Agile in every environment

Extreme precision with any cycle time

Permanently robust

Protected against electrostatic charges

Extremely compact

Clean room certification according to ISO 14644-1

reddot Award 2016 winner

All KR AGILUS versions at a glance:

Hygienic Machine variant

KR AGILUS CR: Cleanroom automation solution

KR AGILUS WP: 6-axis waterproof robot ideal for wet environments

KR AGILUS EX: Robotic for extreme environments

Request a quote or get more technical details for KR AGILUS

KR AGILUS (6 axes) - technical data

Suitable for these applications

Download the product brochure here:

Small robots can be used in so many different ways: Application examples in various industries

Food-grade robot processes cheese

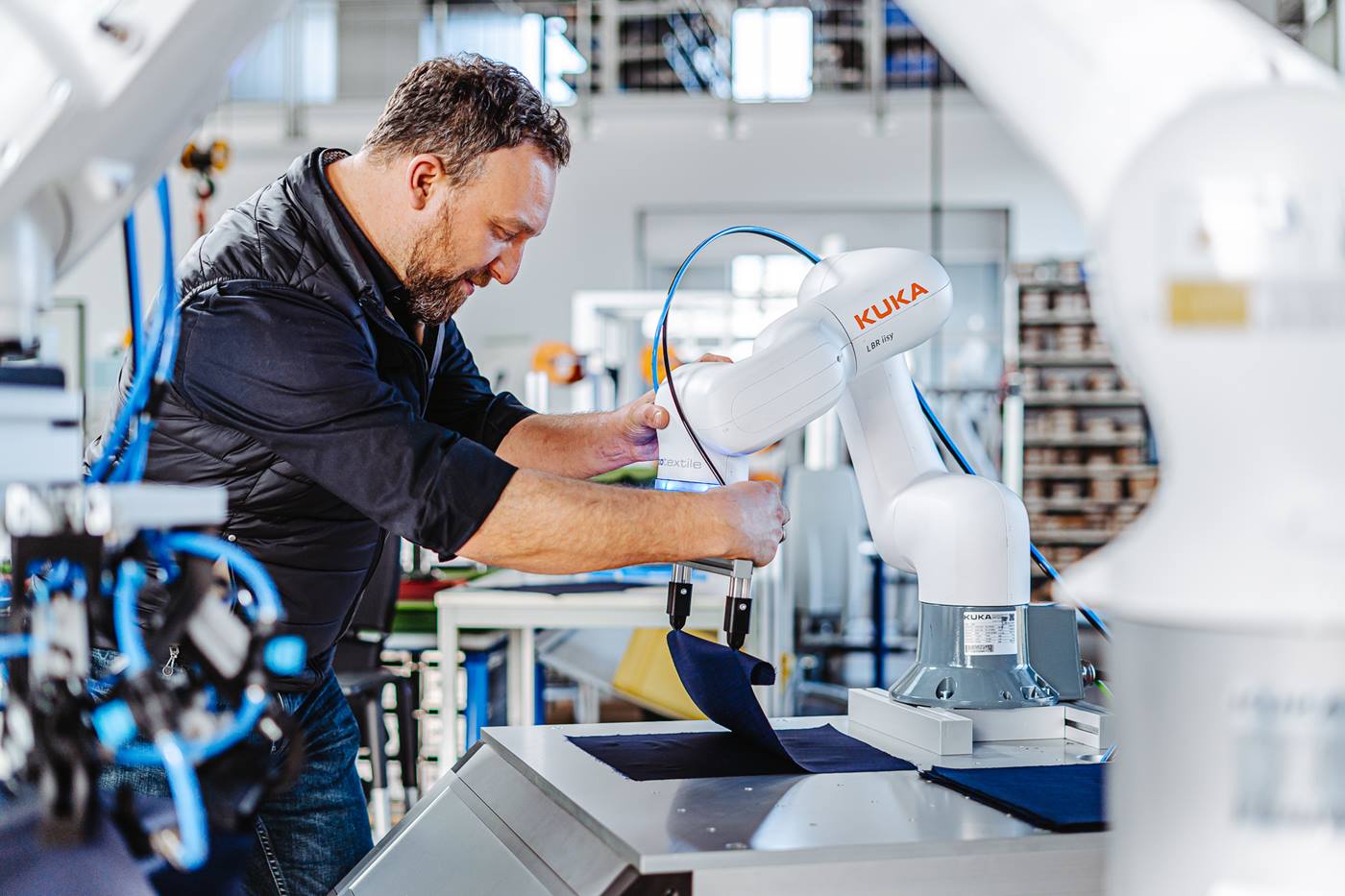

Robots improving the textile industry
